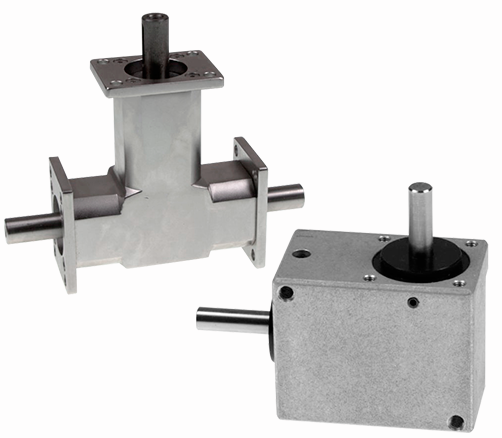

Spiral Bevel Gearboxes BG
Bevel gearboxes transmit rotary motion via right-angle axes, offering high power transmission efficiency. These spiral bevel gearboxes stand out in our bevel gearbox range through the latest, advanced, and innovative technology: they combine compact design with quiet operation and high efficiency.
- Adaptability: modular design allows use of up to six shafts.
- Switching is done manually by operating the control lever with the machine at a standstill.
- Right-angle reversing gearboxes available in sizes 32 – 42 – 55.
- The reversing gearbox can be supplied on request with a third output at 90°.
- Coaxial reversing gearboxes available in sizes 32 – 42 – 55.
Response within 48h (Mon – Fri)
Volume discounts & freight cost coverage for annual orders on request.
Technical Overview
| Overall Efficiency | 94 – 97 % |
| Gear Ratios | 1:1, 2:1, 3:1 |
| Input Speed | up to 1,000 rpm (grease lubrication) |
| Frame Sizes | 32, 42, 55 |
| Configuration | up to 6 shafts possible |
| Types | IO (reversing gearbox), DO (disengagement), IC (coaxial) |
These are basic values. Detailed technical information and diagrams can be found in the PDF catalogue.
