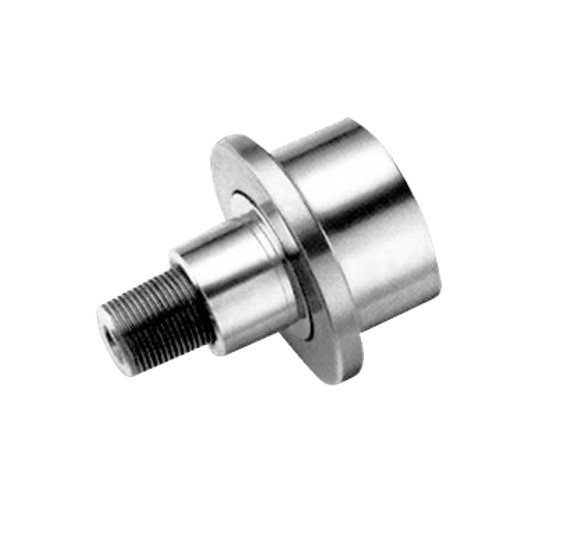

Heavy-Duty Rollers
Designed for highly precise motion under demanding environmental conditions.
- Maximum operational safety
- Minimal maintenance effort
- Precise and reliable motion
- ⌀ 26 to 200 mm (TPC/TPJ), V-groove rollers TPV ⌀ 40 to 165 mm
- Width 20 to 76 mm
- Max. dynamic radial load per roller: TPC up to 78,240 N, TPJ up to 159,430 N, TPV up to 148,100 N
Prices come with your quote – response within 48h (Mon – Fri)
Volume discounts & freight cost coverage for annual orders on request.
Technical Overview
| Max. radial load per roller (dynamic) | TPC 2,790 – 78,240 N · TPJ 6,000 – 159,430 N · TPV 12,200 – 148,100 N (incl. E/A versions) |
| Roller diameter | TPC / TPJ ⌀ 26 – 200 mm · TPV ⌀ 40 – 165 mm (V-groove 26 – 125 mm) |
| Surface Hardness | Rollers 55 – 60 HRC · rails 55 – 60 HRC (standard) or 38 HRC |
| Temperature Range | maintenance-free -34 °C to +107 °C · extended -40 °C to +204 °C (special grease/seal) |
| Bearing Types | Tapered roller or ball bearings (size-dependent) |
| Material | hardened steel |
| Lubrication | maintenance-free |
These are basic values. Detailed technical information and diagrams can be found in the PDF catalogue.
