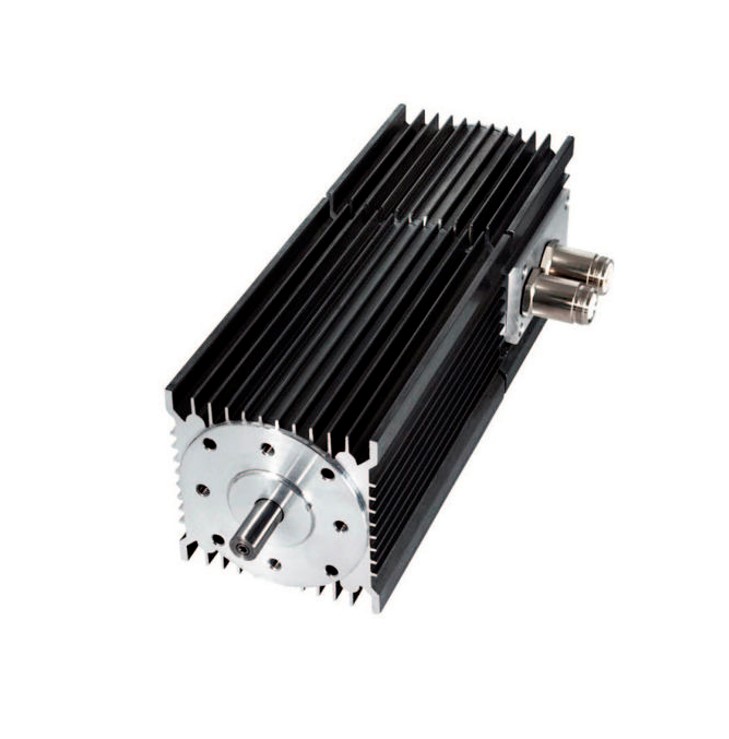

DC Motors
As experts in drive technology, we carry powerful and intelligent DC motors in our extensive range alongside stepper motors, asynchronous motors, and servo drives. The DC motors are available in power classes from 10 to over 500 W. In addition to classic brushed motors with brushes and a commutator, Technische Antriebselemente offers electronically commutated DC motors with and without gearbox that use electronic control, resulting in a more efficient and wear-free operation. We are happy to advise you on selecting a suitable motor and on connecting it to your PLC.
- 12V / 24V / 48V DC
- Power up to 562 W
- Brushless or brushed
- Optional with gearbox
Response within 48h (Mon – Fri)
Volume discounts & freight cost coverage for annual orders on request.
Technical Overview
| BLDC Motor Power | 70 – 562 W |
| BLDC Motor Speed | 2,890 – 3,465 rpm |
| DC Motor Power | 14 – 190 W |
| DC Motor Speed | 3,000 – 4,750 rpm |
| Geared Motor Power | 6 – 10 W |
| Geared Motor Speed | 2,950 – 3,000 rpm |
| Voltage | 12 / 24 / 48 VDC |
| Versions | brushless / brushed |
| Gearbox | optionally integrable |
These are basic values. Detailed technical information and diagrams can be found in the PDF catalogue.
