Rod Ends

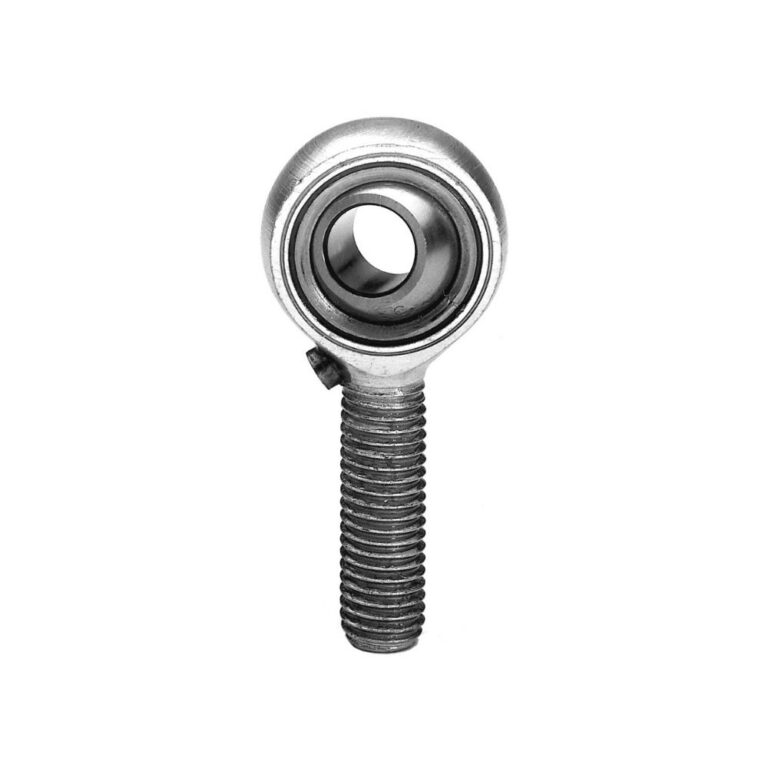

Rod ends from Technische Antriebselemente enable flexible articulated connections in machines and equipment. They are available in various configurations for different load requirements.
- In steel or stainless steel
- Various sizes and load options
Response within 48h (Mon – Fri)
Volume discounts & freight cost coverage for annual orders on request.
Technical Overview
| Radial Load Capacity (static) | Steel 3,300 – 73,700 N (size 5 – 30) · stainless 4,600 – 44,000 N (size 6 – 20) |
| Axial Load Capacity (static) | Steel 2,300 – 39,600 N · the catalogue gives no axial rating for the stainless version |
| Tilt Angle (Stainless Steel) | 9 – 13° |
| Types | POS (external thread), PHS (internal thread) |
| Thread | Right-hand / left-hand thread |
| Materials | Steel, stainless steel (with PTFE sliding bearing, maintenance-free) |
These are basic values. Detailed technical information and diagrams can be found in the PDF catalogue.
