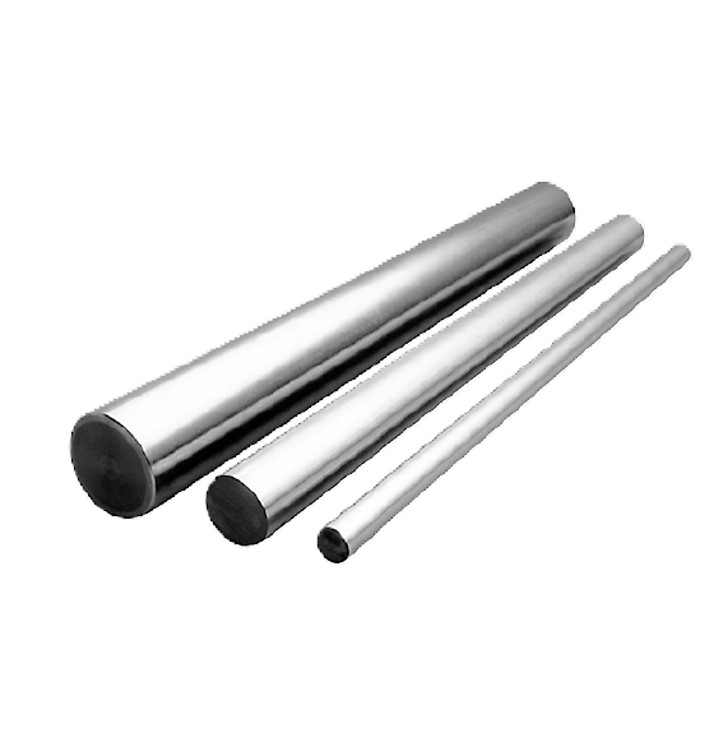

Precision Shafts
Our precision shafts made of steel, stainless steel, or chrome-plated material feature an inductively hardened and polished surface. They can be flexibly machined in h6 or h7 tolerance to individual drawings and cut to custom lengths. In combination with ball or plain bushings, they provide a cost-effective solution for guide systems in automation technology, mechanical engineering, and the food and pharmaceutical industries.
- Cost-effective
- Wide range of applications
- Universally applicable
- Infinitely extendable via spigot connection
Response within 48h (Mon – Fri)
Volume discounts & freight cost coverage for annual orders on request.
Technical Overview
| Shaft Diameter | Steel W/WV ⌀ 4 – 120 mm · stainless WRA/WRB ⌀ 5 – 60 mm |
| Lengths | standard length 3,000 mm from stock, up to 6,000 mm on request |
| Material | W: Cf53 (1.1213) · WV: Cf53 chrome-plated · WRB: X46Cr13 · WRA: X90CrMoV18 (1.4112) |
| Tolerance | h6 or h7 |
| Surface Hardness | steel W/WV 61 ±2 HRC · stainless WRB 55 ±3 HRC |
| Roundness (t1) | W 4 – 10 µm · WV 6 – 14 µm · WRA/WRB 4 – 9 µm (depending on ⌀) |
These are basic values. Detailed technical information and diagrams can be found in the PDF catalogue.
