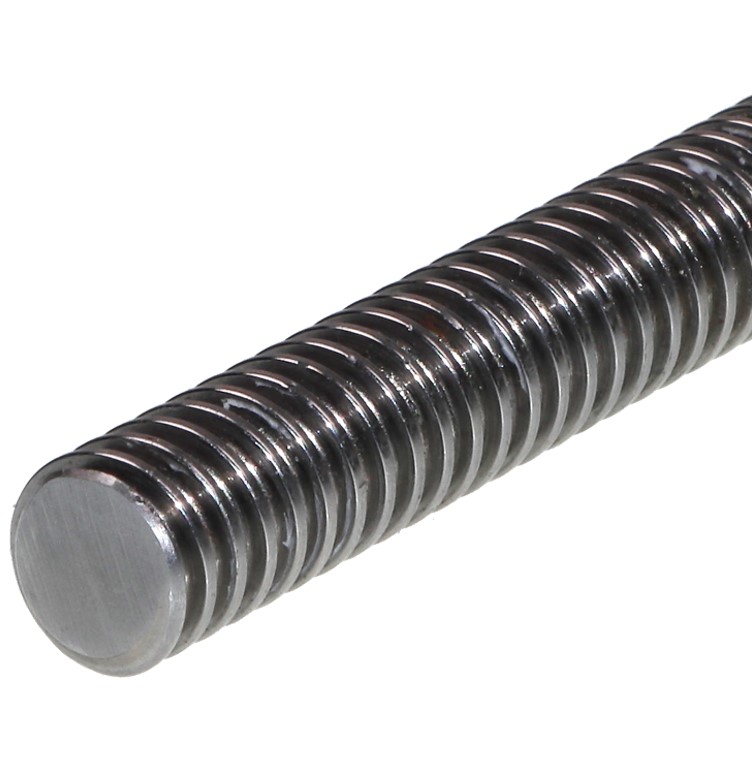

Lead Screws
Our precision trapezoidal and ball screws are available in numerous configurations and ensure reliable conversion of rotational to linear motion. These components are ideally suited for simple adjustment tasks, high-precision positioning systems, and the design of modern linear drives.
- Single-start, right-hand or left-hand lead
- Various materials
- Matching nuts available
- Cut to customer specifications
- Right-hand and left-hand thread up to 3000 mm
- Various pitches
Response within 48h (Mon – Fri)
Volume discounts & freight cost coverage for annual orders on request.
Technical Overview
| Trapezoidal Screw Spindle Ø | 10 – 60 mm |
| Lead / Pitch | 3 – 9 mm |
| Ball Screws | Up to 3,000 mm length |
| Thread | Right-hand and left-hand thread |
| Spindle Material | Steel C15 / Stainless steel 1.4301 / 1.4305 |
| Nuts | Trapezoidal nuts in machining steel 1.0715 or RG7 bronze; stainless 1.4305 on request |
| Nut Types | single, double, FSC, FSK, FSI, RSK, RSY (others on request) |
These are basic values. Detailed technical information and diagrams can be found in the PDF catalogue.
