Worm Gear Sets

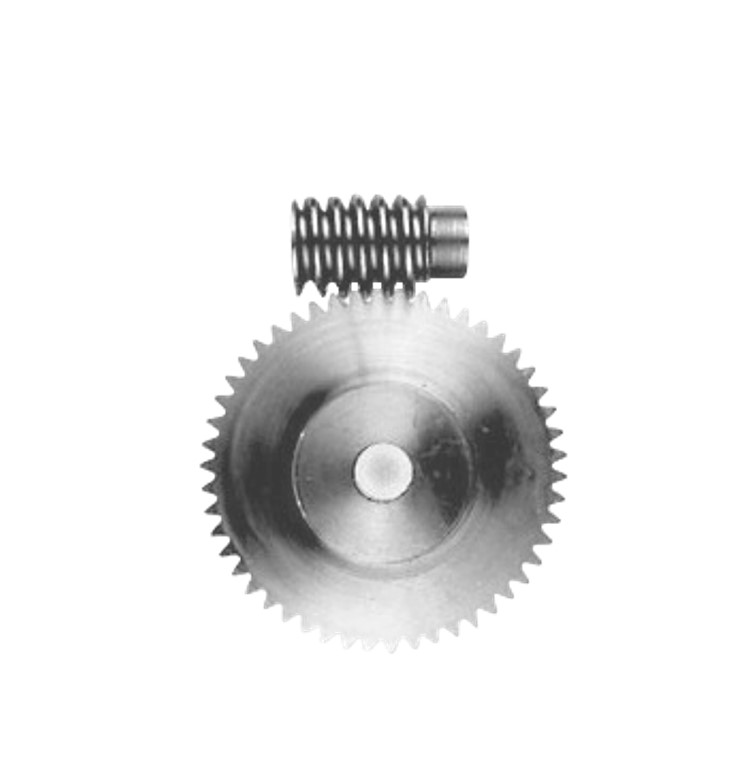

Our precision worm wheels, worms and worm gear sets are available in modules 0.5 to 4 and in various configurations, ensuring reliable power transmission through their steel and bronze material combination. These components are ideally suited for general mechanical engineering and for achieving high reduction ratios in compact gearbox solutions.
- 1–8 thread starts
- High reduction ratios achievable
- Self-locking depending on reduction ratio
- Lower efficiency compared to spur or bevel gears
Prices come with your quote – response within 48h (Mon – Fri)
Volume discounts & freight cost coverage for annual orders on request.
Technical Overview
| Module | complete sets modules 1 / 1.5 / 2 / 2.5 / 3 / 4 · individual worms and worm wheels modules 0.5 / 0.75 / 1 / 1.5 / 2 |
| Number of Teeth | 20 – 150 |
| Gear Ratio | 4.63:1 – 47:1 (5 sizes with 8 ratios each) |
| Thread Starts | 1 – 8 |
| Material | Bronze (Cu Sn 12 Pb), ETG 100 |
| Self-locking | only i = 47:1 is marginally self-locking — none of the other ratios are |
These are basic values. Detailed technical information and diagrams can be found in the PDF catalogue.
