Cam Rollers

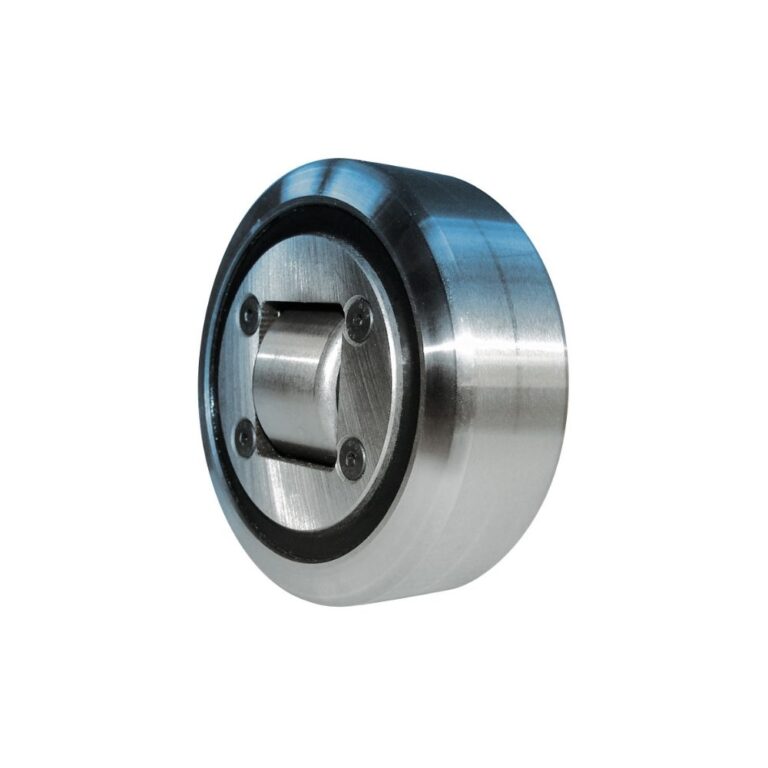

Combined bearings made of high-quality steel can be re-lubricated easily in almost every size — the exceptions are sizes FE106 and FE108. Centric or eccentric rollers can be attached directly to devices or mounting plates via weld studs. They are used in forklifts, heavy-duty conveyor systems, packaging systems, and elevator installations.
- Standard U-profiles
- Centric and eccentric
- With weld studs; re-lubricatable except FE106/FE108
- Cam followers KR16PP – KR90PP in the same catalogue
Response within 48h (Mon – Fri)
Volume discounts & freight cost coverage for annual orders on request.
Technical Overview
| Load Capacities (combined bearings) | radial C 24 – 183 kN / C₀ 33 – 353 kN · axial C_a 10 – 82 kN / C₀a 14 – 131 kN |
| Diameter | roller ⌀ 52.5 – 149 mm · stud ⌀ 30 – 60 mm |
| Cam followers (same catalogue) | KR16PP – KR90PP, ⌀ 16 – 90 mm, C_r 3,700 – 46,300 N, up to 12,000 rpm · eccentric as KRE |
| Versions | centric / eccentric |
| Profile | U-profile guide |
| Material | Steel (high-grade) |
| Mounting | Weld stud; re-lubrication possible — except FE106 and FE108 |
These are basic values. Detailed technical information and diagrams can be found in the PDF catalogue.
