Special Couplings

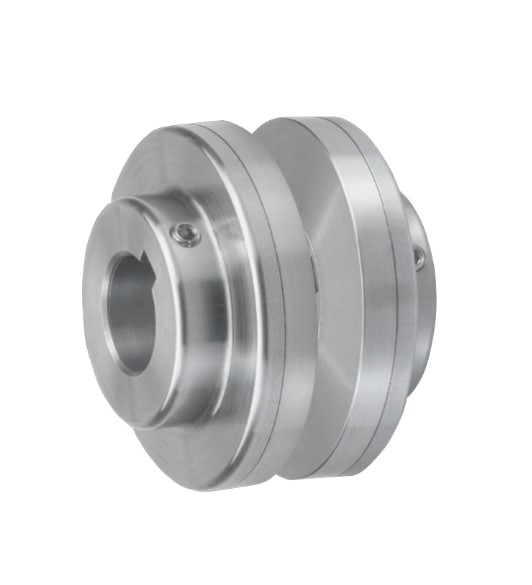

In addition to classic servo couplings, we also offer special solutions for demanding applications. OLDHAM®, UNI-LAT®, and double-loop couplings compensate for misalignment or shaft displacement during the coupling of two shafts while reliably transmitting torque. For hermetically sealed, contactless torque transmission, our permanent magnet couplings (PMKC) have their own dedicated product page with series, technical data, and sizing guidance.
- Contactless torque transmission
- High torsional stiffness
- For compensation of large shaft displacements
- FDA-compliant versions available
Response within 48h (Mon – Fri)
Volume discounts & freight cost coverage for annual orders on request.
Technical Overview
| Magnetic Couplings Outer Ø | 30 – 90 mm |
| Magnetic Couplings Torque | up to 20 Nm (at 1 mm air gap) |
| Magnetic Couplings Material | Stainless steel 1.4401 |
| UNI-LAT® Bore Diameter | 3 – 16 mm |
| UNI-LAT® Peak Torque | 0.3 – 3.5 Nm |
| OLDHAM® Bore Diameter | 2 – 30 mm |
| OLDHAM® Peak Torque | 0.06 – 44 Nm |
| Double Loop Couplings Speed | up to 3,000 rpm |
| Double Loop Couplings Torque | up to 2 Nm |
| Double Loop Couplings Material | Stainless steel 1.4404 |
These are basic values. Detailed technical information and diagrams can be found in the PDF catalogue.
