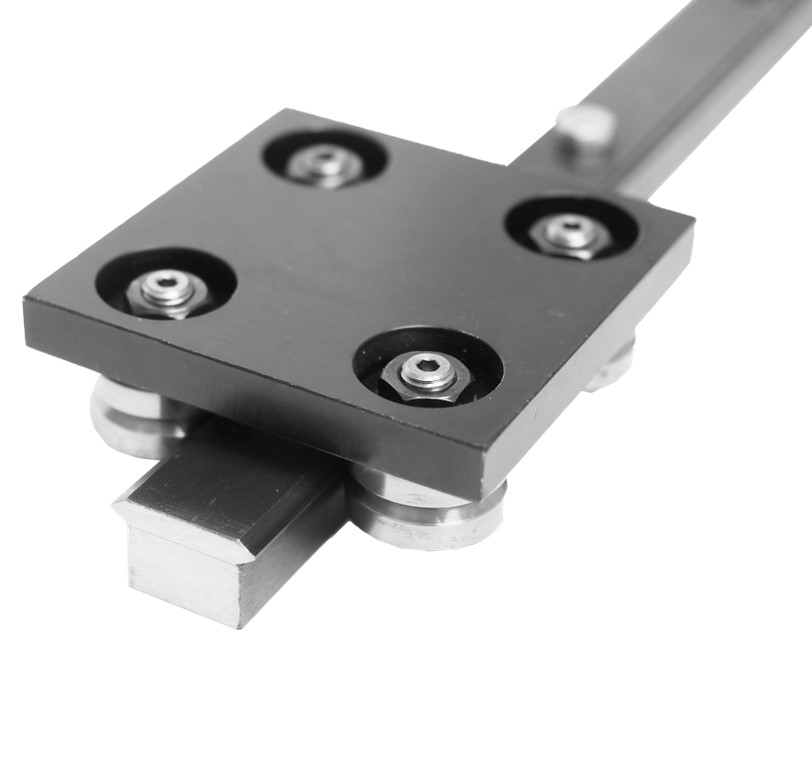

The LinRol system from Technische Antriebselemente GmbH offers extremely accurate roller guidance for a wide range of applications in industry, mechanical engineering, and at home. The combination of double-sided or single-sided guide rails, spacer rails, centric and eccentric guide rollers, and a carrier plate provides robust and reliable roller guidance including rails. The system is highly precise and offers a long service life and high accuracy.
The LinRol guide system is available in two versions: a 90° version with a V-shaped roller running surface that creates a wiping effect, and a 70° version, which is also equipped with stainless steel rails and rollers. Guide rails and guide rollers can be supplemented with support rails and support rollers to create systems with fixed and floating sides, ensuring increased stability and precision in motion control. For more information, please refer to the frequently asked questions at the bottom of the page.
• Extremely precise roller guide system for mechanical engineering
• Lubrication-free operation possible:
– Sealed guide roller with lifetime lubrication
– Rails may run dry; lubrication improves running characteristics
• Self-cleaning guide system
• High torques
• High loads up to 3.5 kN radial per roller
• High feed speeds up to 1.5 m/s
• Low rolling resistance (low drive forces required)
• Endless rail assembly possible thanks to ground, bevelled rail joints
• Many possible combinations of rails and rollers
• All mounting positions possible: vertical, horizontal, opposite, overhead, etc.
• General mechanical engineering
• Automation technology
• Special machine construction
• Precision engineering
• Handling technology
• Packaging machines
• Paper and cellulose industry
• Textile industry
• Food industry
• Medical and pharmaceutical technology
• Vacuum
