MSA
Here you will find a tabular overview of the technical data for our MSA products.
- High-quality workmanship and materials
- Precision manufacturing to industry standards
- Reliable in demanding applications
Response within 48h (Mon – Fri)
Volume discounts & freight cost coverage for annual orders on request.
Technical Overview
| Lifting Force | up to 100 N |
| Feed Rate | up to 80 mm/s |
| Stroke Lengths | 27 – 56 mm |
| Voltage | 12 VDC |
| Operating Temperature | -10°C to +60°C |

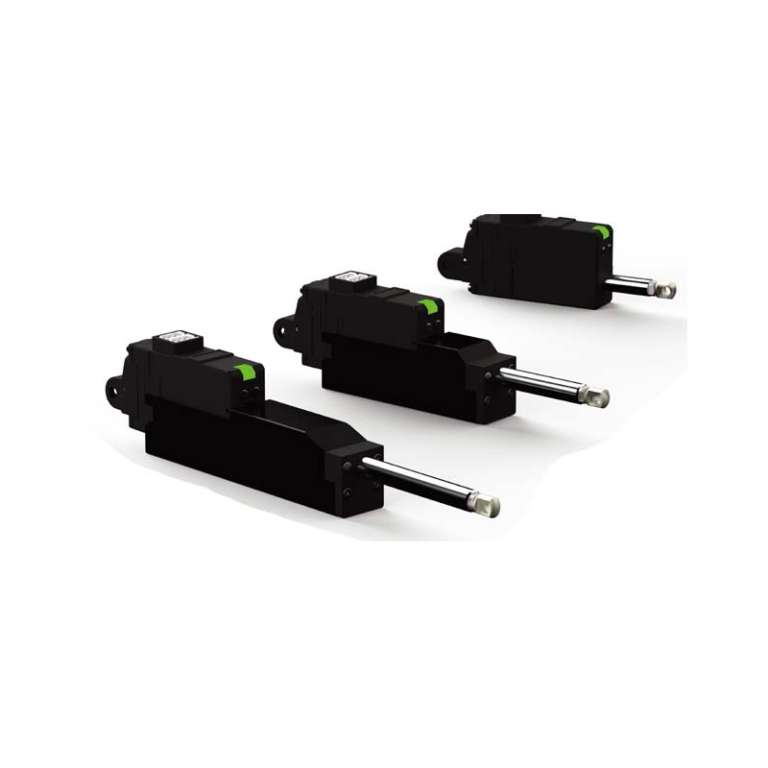

| Design | Miniature linear actuator |
| Protection Class | IP54 |
| Weight | from approx. 106 g |
These are basic values. Detailed technical information and diagrams can be found in the PDF catalogue.
Documentation
Compatible Products
These products can be optimally combined with this product.
Frequently Asked Questions
MSA linear actuators are available in various stroke lengths that, depending on the series, range from a few millimeters to several hundred millimeters. Please refer to our catalog for the exact available stroke lengths, or contact us for individual consultation regarding your specific stroke requirements.
The feed force of MSA linear actuators varies depending on the model and reduction ratio. Depending on the configuration, both horizontal and vertical loads can be reliably moved. The nominal load and maximum vertical load are specified in the technical data sheet for each variant.
MSA linear actuators are designed for various DC voltages. Typical supply voltages are 12 V and 24 V DC, enabling flexible use in different automation environments. AC variants are also available on request.
MSA linear actuators offer high positioning accuracy, achieved through the combination of spindle drive and gear reduction. For applications with particularly high repeatability requirements, we recommend using optional limit switches or potentiometers for position feedback.
DC linear actuators are particularly suitable for mobile applications and areas where fine-grained speed control is required. AC linear actuators are preferred in stationary industrial applications and generally offer higher continuous duty ratings. We are happy to advise you on selecting the optimal drive solution.
MSA linear actuators are designed for use in industrial environments and feature appropriate protection classes. Depending on the version, various IP protection classes are available, providing protection against dust and moisture. Reinforced versions can be requested for particularly demanding environments.
MSA linear actuators can be inquired about and ordered directly through our sales team. Standard variants are generally available from stock on short notice. For special versions or larger quantities, we will be happy to provide an individual quotation with a specific delivery time. Please use our contact form or call us directly.
