Selecting Linear Guides, Calculating Service Life

5 units · approx. 36 minutes total · Step 1 of 8

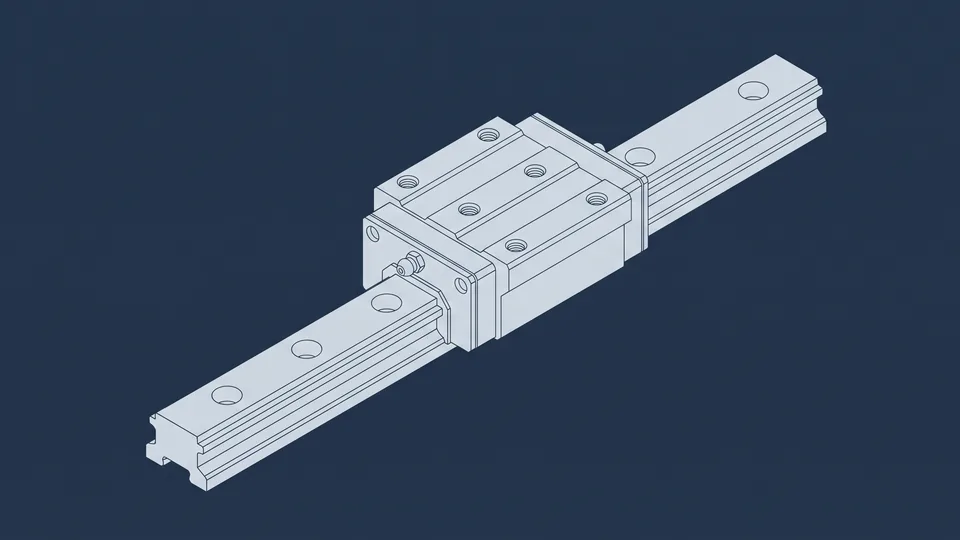

Getting Started

This module focuses on the selection and design of linear guides—from design type and static safety to L10 service life calculations. You will learn how static and dynamic load ratings, safety factors, and service life are mathematically related, and how ball, roller, and slide guides differ fundamentally.

The course concludes by examining how the installation orientation, preload, and torque load affect the actual service life. Calculation exercises, a decision tree, flashcards, and a case study bring the theory to life; a self-test at the end tests your understanding of the material.

Learning Objectives – After completing this module, you will be able to:

  • Distinguish between different types of linear guides (profiled rail, cage, round shaft; ball, roller, sliding);
  • calculate the static load rating C₀ and the safety factor S₀ = C₀/P₀, and apply guideline values;
  • Calculate the L10 service life formula for ball and roller guides and convert it to operating hours;
  • Select ball and roller guides based on stiffness, load rating, accuracy, and cost;
  • Take into account the installation orientation, preload, accuracy classes, and torque load during installation.

Learning units

Five short learning units (7–8 minutes) with learning objectives, examples, and knowledge checks—standalone learning content for this module, maintained independently of the website’s guides. Progress is saved locally in this browser.

Calculation Exercise 1: Static Safety

A carriage has a static load rating of C₀ = 50 kN. The maximum load that occurs is F = 10 kN.

Calculate the static safety factor S₀.

For verification: Linear Guide Sizing (opens in a new tab)

Calculation Exercise 2: L10 service life

A roller guide (line contact, exponent 10/3) has a dynamic load rating of C = 25 kN at an equivalent operating load of P = 5 kN.

Calculate L10 in units of 10⁵ m.

For verification: Service life calculator (opens in a new tab)

Decision Tree: Ball or Roller?

Four quick questions about load, speed, stiffness, and accuracy—you’ll receive a well-reasoned recommendation with a link to the appropriate guide.

Question 1 of 4

What is the load on the guide?

The decisive factor is the maximum load that occurs, including brief peak loads.

This feature needs JavaScript. You can reach the same recommendation using this overview.

Questions and answers

  1. What is the load on the guide? (The decisive factor is the maximum load that occurs, including brief peak loads.)
    • High to intermittent – Heavy-duty applications, presses, large gantry systems, molding machine tables
    • Moderate – Typical load of a machine tool or handling axis
  2. How fast does the axis need to move? (Ball guides are designed for dynamic performance, while roller guides are designed for high load capacity.)
    • Fast (up to 5 m/s) – Assembly, pick-and-place, dynamic axes
    • Slower (2–3 m/s or less) – Heavy-duty positioners, presses, molding machines
  3. How important is maximum stiffness against breakdown torque? (Relevant for cantilevered loads or high machining forces.)
    • Very important – Cantilevered load, milling or cutting forces
    • Secondary – Breakdown torques are small or well distributed
  4. How important is positioning accuracy in the micrometer range? (Relevant for precision axes and measurement technology.)
    • Very important – Precision class, measurement or optical technology
    • Secondary – Standard positioning accuracy is sufficient

Recommendations

The first matching line applies.

  1. If What is the load on the guide?: High to intermittent → Recommendation: Recommendation: Roller guide – For high or shock loads, roller guides are the preferred choice: The linear contact provides higher load-carrying capacity (especially static) and stiffness than a ball guide for the same size—the exact factor depends on the manufacturer. Typical applications: presses, heavy-duty positioners, large gantries.
  2. If How fast does the axis need to move?: Fast (up to 5 m/s) → Recommendation: Recommendation: Ball guide – For high-speed axes up to 5 m/s, ball guides are the right choice: The point contact generates low friction and allows for high travel speeds—roller guides are usually limited to 2–3 m/s in continuous operation.
  3. If How important is maximum stiffness against breakdown torque?: Very important → Recommendation: Recommendation: Roller guide – If maximum stiffness against breakdown torque is critical, the linear contact profile makes the roller guide the better choice: it has less elastic deflection than a ball guide, but slightly higher friction.
  4. If How important is positioning accuracy in the micrometer range?: Very important → Recommendation: Recommendation: Ball guide – When it comes to positioning accuracy in the micrometer range, ball guides are the clear leader: repeatability of ±0.01 to 0.05 mm can be achieved, and with preload, they can even be made backlash-free—roller guides typically achieve only ±0.05 to 0.1 mm.
  5. In all other cases → Recommendation: Recommendation: Ball guide – Unless there are specific requirements regarding load, speed, stiffness, or accuracy, ball guides are the more cost-effective standard solution—a wide range of models is available at a lower purchase price than specialized roller guides.

Flashcards: Linear Guide Terminology

Eight technical terms from the glossary—click on the card (or press Enter or the spacebar) to see the definition.

Flashcards

Tap to see the definition.

This feature needs JavaScript. You can still read the learning content without JavaScript.

Linear Guides
Linear motion guidance systems—available as profile rail, cage, or round-shaft guides with balls, rollers, or sliding elements as rolling or sliding bodies. Source: Glossary “Linear Guides”
Static load rating (C₀)
Static load at which the permanent deformation of the rolling elements and raceway is just within tolerable limits (ISO 14728-2). Basis for the safety factor S₀ = C₀/P₀. Source: Glossary “Static load rating (C₀)”
Dynamic load rating (C)
The load at which a guide series reaches its nominal L10 service life (ISO 14728-1). Thanks to line contact, roller guides achieve higher C-values than ball guides of the same size. Source: Glossary “Dynamic load rating (C)”
L10 service life
Running distance (in 10⁵ m) that at least 90% of a guide series can achieve without fatigue damage. L10 = (C/P)^p, where p = 3 (ball) or 10/3 (roller). Source: Glossary “L10 service life”
Crossed-roller guide
Guide with rollers alternately crossed at 90°—accommodates loads from all directions, can be preloaded to be very rigid and backlash-free, but has a limited stroke (cage length). Source: Glossary “Crossed-roller guide”
Roller recirculation
Rolling elements circulate in a closed loop within the carriage—enabling a theoretically unlimited stroke, in contrast to cage-guided (non-circulating) guides. Source: Glossary “Roller recirculation”
Cage positive guidance
Mechanical synchronization of the rolling element cage—usually via a rack and pinion—prevents cage drift during vibration, dynamic operation, or changes in direction. Source: Glossary “Cage positive guidance”
Stiffness (Linear Guide)
Ratio of load to elastic deformation (N/µm). Thanks to line contact, roller guides achieve values approximately 2 to 3 times higher than comparable ball guides. Source: Glossary “Stiffness (Linear Guide)”

Case Study: Measuring Machine – Stiffness vs. Cost

A customer in the measuring machine industry is planning a coordinate measuring machine with a short travel distance (stroke approx. 300 mm) that requires the highest positioning accuracy and maximum stiffness against breakdown torque because the probe extends laterally. The designer is torn between a standard ball-screw guide—which is already installed in many other machines at the company and can be procured at a low cost—and a specialized cage/crossed-roller guide, which is more expensive but, according to the data sheet, is significantly stiffer and can be preloaded to eliminate play. The budget for the axis is limited.

Key Questions

  1. Which design offers the highest stiffness and precision for short strokes—and why?
  2. What trade-offs does this design entail compared to a standard profile rail guide?
  3. Under what conditions would the standard ball-profiled rail be an acceptable choice despite its lower stiffness?
View Worked Solution

1. The cage/crossed-roller guide: Rollers crossed at 90° in an alternating pattern absorb loads from all directions; contact is linear (greater stiffness than point contact), and the guide can be preloaded to eliminate play—resulting in exceptionally smooth operation and straightness within a compact installation space.

2. The stroke is limited to approximately twice the cage length—which is not critical for the 300 mm in this application, but would preclude a longer travel distance. In addition, when the system remains stationary in one position for a long time, “cage creep” must be taken into account in the design, for example, by using cage positive guidance.

3. If a significantly longer stroke were required, or if the tilting moment load could be controlled through a more symmetrical design (e.g., two carriages spaced farther apart), the more economical standard profile rail might be sufficient—the additional stiffness of the crossed-roller guide is only worthwhile if accuracy and tilting moment capacity are indeed the critical requirements.

Technical Background: Selecting a Linear Guide (opens in a new tab) and Ball vs. Roller Guides (opens in a new tab)

Self-test

10 questions about this module—immediate feedback with explanations and source links. The module is considered complete if you score 7 out of 10 points or higher.

Self-test

10 questions for this module. You see right after each answer whether it was correct.

This feature needs JavaScript. You can still read the learning content without JavaScript.

Before each answer, you state how confident you feel. This helps distinguish knowledge gaps from uncertainty. It has no effect on the score.

Question 1 of 10

Question 1 of 10

What is the formula for the static safety factor S₀ of a linear guide?

Explanation

S₀ = C₀ / F, where C₀ is the static load rating and F is the maximum load acting on the most heavily loaded carriage.

Source: Linear Guide Sizing →
Question 2 of 10

A carriage has C₀ = 64 kN, and the maximum load is F = 8 kN. What is the static safety factor S₀?

Explanation

S₀ = C₀ / F = 64 / 8 = 8.

Source: Linear Guide Sizing →
Question 3 of 10

According to the guidelines, what S₀ range applies to “all known loads, smooth operation without shocks”?

Explanation

3–5 applies when all loads are known and the guide operates smoothly without shocks. 5–8 applies to standard designs, 8–12 to high dynamics/shocks, and 12 and above to suspended configurations.

Source: Linear Guide Sizing →
Question 4 of 10

Which service life exponent p applies to ball guides (point contact) in the formula L10 = (C/P)^p?

Explanation

For balls (point contact), p = 3; for rollers (line contact), p = 10/3 ≈ 3.33.

Source: Calculate the service life of a roller guide →
Question 5 of 10

A roller guide has C = 40 kN and P = 8 kN. What is the value of L10 in units of 10⁵ m (exponent 10/3)?

× 10⁵ m
Explanation

L10 = (C/P)^(10/3) = (40/8)^(10/3) = 5^3.33 ≈ 214 – this corresponds to approximately 21,400 km of travel.

Source: Calculate the service life of a roller guide →
Question 6 of 10

According to the learning unit, which of the following statements regarding the comparison of ball and roller guides are correct? (Multiple choice)

Explanation

According to the comparison table, the coefficient of friction for the ball guide is μ ≈ 0.0015–0.003, compared to μ ≈ 0.004–0.006 for the roller guide, and the roller guide achieves high bending stiffness rather than just moderate bending stiffness. In terms of acquisition costs, the situation is reversed—the ball guide is the more cost-effective standard solution—and the repeatability differs (±0.01–0.05 mm versus ±0.05–0.1 mm).

Source: Ball Guide vs. Roller Guide →
Question 7 of 10

Which guide type offers the highest positioning accuracy in the micrometer range (precision class)?

Explanation

Precision-class ball guides achieve repeatability of ±0.01 to 0.05 mm—the finest of the three designs.

Source: Ball Guide vs. Roller Guide →
Question 8 of 10

According to the learning unit, what are the three accuracy classes for ball guides?

Explanation

Ball guides are available in the accuracy classes Normal (C), High (H), and Precision (P); the precision classes are used for positioning accuracies in the micrometer range.

Source: Selecting a Linear Guide →
Question 9 of 10

Which design has a stroke limited to approximately twice the cage length but offers the smoothest operation and zero backlash?

Explanation

Cage-guided bearings operate without rolling elements circulating—the stroke is limited to approximately twice the cage length, but they run extremely smoothly and can be preloaded to eliminate play.

Source: Selecting a Linear Guide →
Question 10 of 10

Why shouldn’t the static safety factor S₀ be derived solely from the L10 service life?

Explanation

The L10 service life describes fatigue under continuous operation. Protection against one-time peak loads, such as impacts or emergency stops, is provided solely by the static load-bearing capacity S₀ = C₀/P₀.

Source: Selecting a Linear Guide →

Advanced Topics (optional)

The three linear guide guides on the website, in case you’d like to delve deeper. Reading them is not required for the learning units and self-test in this module.
